Model H

Reliable and Accurate

model H

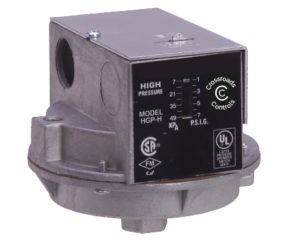

The Model H is a gas pressure switch that monitors pressure and breaks the electrical control circuit when pressure rises above or drops below the desired set point. Made of rugged die-cast aluminum, it offers reliability, repeatability and accuracy.

Easily visible ON-OFF indicator
Surge Pressure: 35 PSI
Mounts horizontally without leveling
Mounts to any modular valve body
Cost-effective pricing
Custom design per OEM specifications available

This item is available in the following models:

Show entries

Search:

Show entries

Search:

Show entries

Search:

Switch	Model	Reset	Pressure	Range
RLGP-H	803113301	Automatic Reset	Low Gas Pressure	1 to 7 PSI, .07 to .48 Bar
RLGP-H	803113302	Automatic Reset	Low Gas Pressure	6 to 15 PSI, .41 to 1.03 Bar
RHGP-H	803113401	Automatic Reset	High Gas Pressure	1 to 7 PSI, .07 to .48 Bar
RHGP-H	803113402	Automatic Reset	High Gas Pressure	6 to 15 PSI, .41 to 1.03 Bar
LGP-H	803113101	Manual Reset	Low Gas Pressure	1 to 7 PSI, .07 to .48 Bar
LGP-H	803113102	Manual Reset	Low Gas Pressure	6 to 15 PSI, .41 to 1.03 Bar

Showing 1 to 6 of 6 entries

Previous Next

Showing 1 to 6 of 6 entries

Previous Next

Showing 1 to 6 of 6 entries

Previous Next

View Owner’s Manual for all Model H Models | View Spec Sheet for all Model H Models
